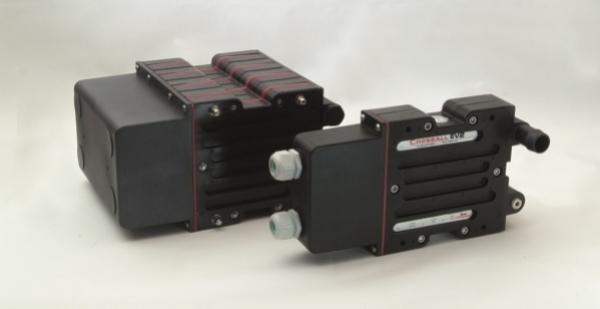

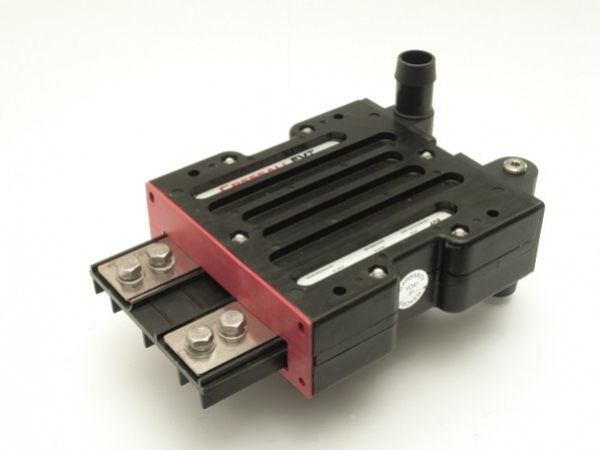

Water cooled resistors

A new range of water cooled resistors for low and medium voltage applications, especially severe conditions in marine systems. Rheostatic braking of all types of low and AC drives in:

• Winches and cranes

• Cable laying vessels

• Propulsion drives on ships or oil rigs

• Dummy loads and discharge resistors

• Liquid heating

Patented design that encapsulates and totally separates the resistor elements from the coolant.

• System voltage : Continuous operating voltage – EV2: 1.5kV,

• Advanced materials: Light weight, low volume, high (10kW/kg) power density

• Modular construction: EV resistors can be combined to handle any power inputs from 10kW to 1MW or more.

• Extensively tested: Proven to meet all major shock and vibration standards for automotive/traction use.

• IP56 ingress protection: Suitable for automotive/traction/marine use.

• Low time constant  Full output temperature within 2 sec for heating applications.
