BTMS (Battery Thermal Management System)
Temperature is one of the most critical factors affecting the performance, safety, and lifetime of batteries used in railway applications.
To ensure optimal operation, batteries must be maintained within their ideal temperature range, typically between 15°C and 35°C. Operating outside this range can significantly reduce battery efficiency, accelerate cell aging, and shorten overall service life.

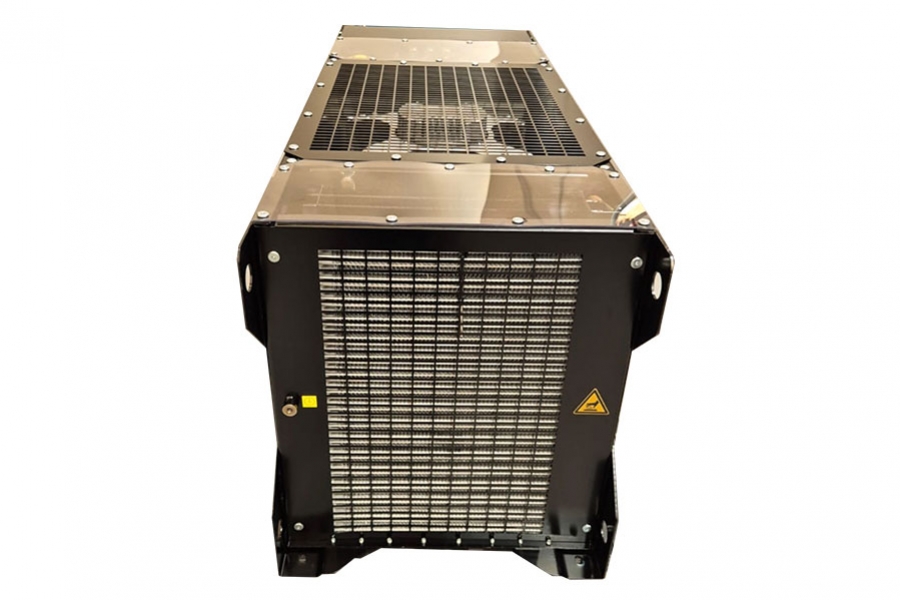

TELEMA BTMS is specifically designed to keep batteries within their optimal operating conditions, maximizing performance, improving energy efficiency, and extending battery lifetime—even in the most demanding railway environments.
- EN 50125 – Ambient operating conditions: -25°C to +55°C
- EN 61373 – Shock and vibration testing
- EN 45545 – Fire and smoke resistance
- EN 50155 – Electronic equipment
- EN 50121 – EMC requirements (Electromagnetic Compatibility)
- EN 60077 – Electrical equipment
- EN 50657 – Software development
TELEMA BTMS is available in two versions
BTMS-C6H6
BTMS-C8H6 ECO
| Technical characteristics | BTMS-C6H6 | BTMS-C8H6 ECO |
|---|---|---|
| Functional Information | ||
| Active Cooling Capacity (40°C amb., 25°C coolant) | 8 kW | 6.5 kW |
| Passive Cooling Capacity (0°C amb., 25°C coolant) | 5.5 kW | not available |
| Heating Power | 6.0 kW | 6.0 kW |
| Coolant Flow | 60 lpm | 30 lpm |
| Nominal Coolant Flow | 48 lpm | 20 lpm |
| External Pressure Level | 1.3 bar | 1 bar |
| External Fluid Volume Compensation Capability | up to 50 L | up to 40 L |
| Sound Power (Lw) at full performance (45°C amb.) | 90 dB(A) | 83 dB(A) |
| Silent Mode Max Sound Power (Lw) | 80 dB(A) | 74 dB(A) |
| Electrical Information | ||
| Power Equipment (Vac) – EN 50533 | 380-480 V (50-60 Hz) | 380-480 V (50-60 Hz) |
| Electronics (Vdc) – EN 50155 | 110/72/24 Vdc | 110/72/24 Vdc |
| Communication | CANOpen/TRDP | CANOpen/TRDP |
| General Information | ||
| Dimensions incl. mechanical fixings (L x W x H) | 2455 x 782 x 785 mm | 1750 x 500 x 483 mm |
| Weight (including coolant) | 330 kg | 160 kg |
| Refrigerant | R290 (natural) | R513A |
| Battery Coolant | Water/Ethylene Glycol mix 56-44% | Water/Ethylene Glycol mix 60-40% |
| Storage Temperature Range | -40°C / +70°C | -40°C / +70°C |
